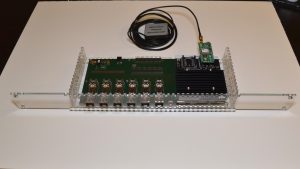

Spark-V2 – 6x SFP+ mezzanine expansion kit for 96boards

150.00

6x SFP+development platform – 96boards mezzanine interface compatible with Ultra96 boards differential pair mapping

  • Components included in the kit:
    • 1x Spark v2 6x SFP+ mezzanine expansion board – LSI-SPARK-V2-BRD7
    • 1x Spark v2 ESD Acrylic 1U box – LSI-SPARK-V2-BOX7
  • Required components (Not included in the kit):
  • Optional components (Not included in the kit):

4 in stock (can be backordered)

Category:

Description

  • Description: Open hardware platform for development of network elements such as bridges, switches, routers, network interconnect testers and network time synchronization grandmasters.
  • Interfaces: 6x SFP+ up to 10Gb Ethernet
  • Board and Mechanics design files (KiCad): github
    • Schematics: pdf
    • PCB layout: pdf
  • Form factor: 1U (19 inch rack unit)
  • Main board (not inlcuded): Ultra96 or alternative with 96Boards mezzanine interface
  • Quick Start Guide (hackster.io)
  • Usecases:
    • Network Interconnect Tester (github)
    • GPS synchronized PTP grandmaster
    • Flow capable Network Bridge
