ice4pi

29.00

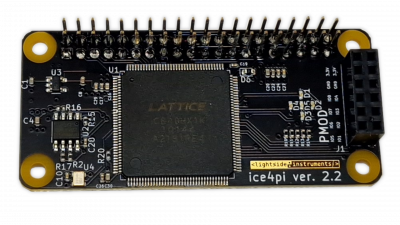

Development platform for Lattice ICE40HX1K-TQ144 for Raspberry Pi.

Out of stock

Category:

Description

  • Description:¬† Open-hardware ICE40 shield for Raspberry Pi with published KiCAD project
  • Software yosys – Open-source toolchain for Verilog – yosys
  • Interfaces:
    • 1x Raspberry Pi 40 pin 2.54 mm socket/pin header (All GPIOs are connected to the FPGA)
    • 1x PMOD 12 pin female connector
    • 5x LEDs
  • Board and Mechanics design files (KiCad): github
    • Schematics: pdf
    • PCB layout: pdf
  • Form factor: Raspberry Pi hat with extension.
  • Main board (not inlcuded): Raspberry Pi 2-4 or Zero¬† Raspberry Pi 40 pin interface and formfactor
  • Quick Start Guide (hackster.io)
  • EAN 7090060720058
  • Order from Amazon https://www.amazon.com/dp/B0BY32HH4G
  • Current board version 2.4
  • OSHWA UID: NO000002
