gpib4pi
€
39.00

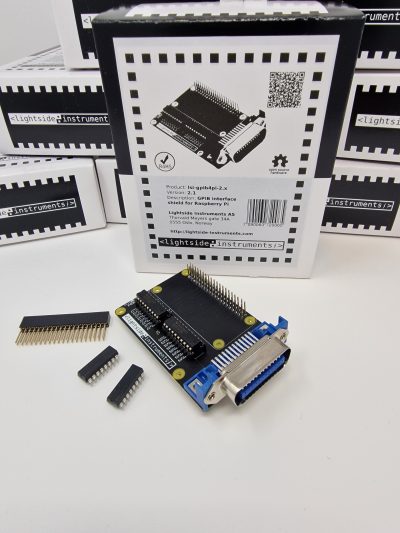

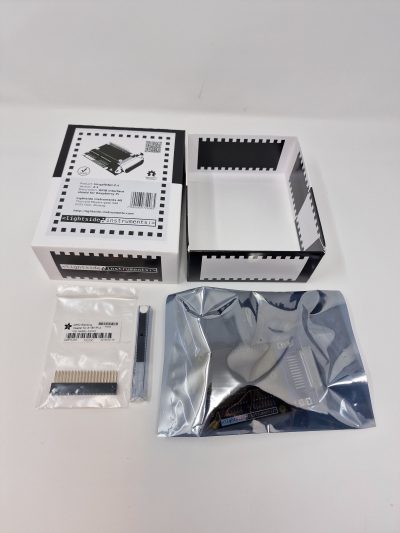

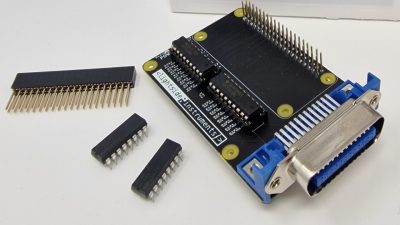

Components included in the kit:
1x Board –
lsi-gpib4pi-2.x
Order on Amazon
https://www.amazon.com/dp/
B0BY32HH4G
Available on backorder
gpib4pi quantity
Add to cart
SKU:
lsi-gpib4pi-2.x
Category:
Hardware
Description
Additional information
Description
Description:
GPIB bitbang adapter for Raspberry Pi compatible with the bitbang linux-gpib driver –
gpib_bitbang
Interfaces:
1x Raspberry Pi 40 pin 2.54 mm socket/pin header
1x GPIB male connector
Board and Mechanics design files (KiCad):
github
Schematics:
pdf
PCB layout:
pdf
Form factor:
Raspberry Pi hat with extension.
Main board (not inlcuded):
Raspberry Pi or alternative with
Raspberry Pi 40 pin interface
and formfactor (note the board outline is the outline of a Raspberry Pi main board and not hat/extension board due to the specifics of the GPIB connector)
Quick Start Guide
(
hackster.io
)
EANĀ
7090060720065
Order on Amazon
https://www.amazon.com/dp/
B0BY32HH4G
Current board version
2.1
OSHWA UID:
NO000003
Additional information
Weight
0.041 kg
Dimensions
9.5 × 5.6 × 2 cm
